A powerful single phase machine ideal for heavier welding tasks where only
a 230v supply is available; farm maintenance, wrought iron work, general fabrication
etc.
On full power at maximum duty cycle the set only consumes around 8kVA, so
requires just a 25 Amp 230v supply.
Featuring a 4 x 4 geared wire feed system for precise wire delivery.
Features include:
All steel, 4 x 4 geared wire feed system
Fully copper wound main transformer & choke
"Soft-Arc" Technology for excellent crisp arc condition
Electronic Spot-Weld Timer
Burnback Control
Torch Latching Facility
Gas Purge
Supplied with:
3 Metre MB25 Type Euro-Torch Assembly
Twin Gauge Industrial Argon Gas Regulator
Earth Lead Assembly
2 Year Warranty
3 Year Main Transformer/Choke Warranty
Technical Specification:
Amps Range: 40 -270 Amps
Supply Voltage: 230v Single Phase
Input Fuse: 25A @ Maximum 270 Amps
Duty Cycle @ 100%: 140 Amps
Duty Cycle @ 60%: 170 Amps
Duty Cycle @ 20%: 270 Amps
Voltage Steps: 12
Weight: 70kg
Dimensions: 780mm high x 442mm wide x 735mm long

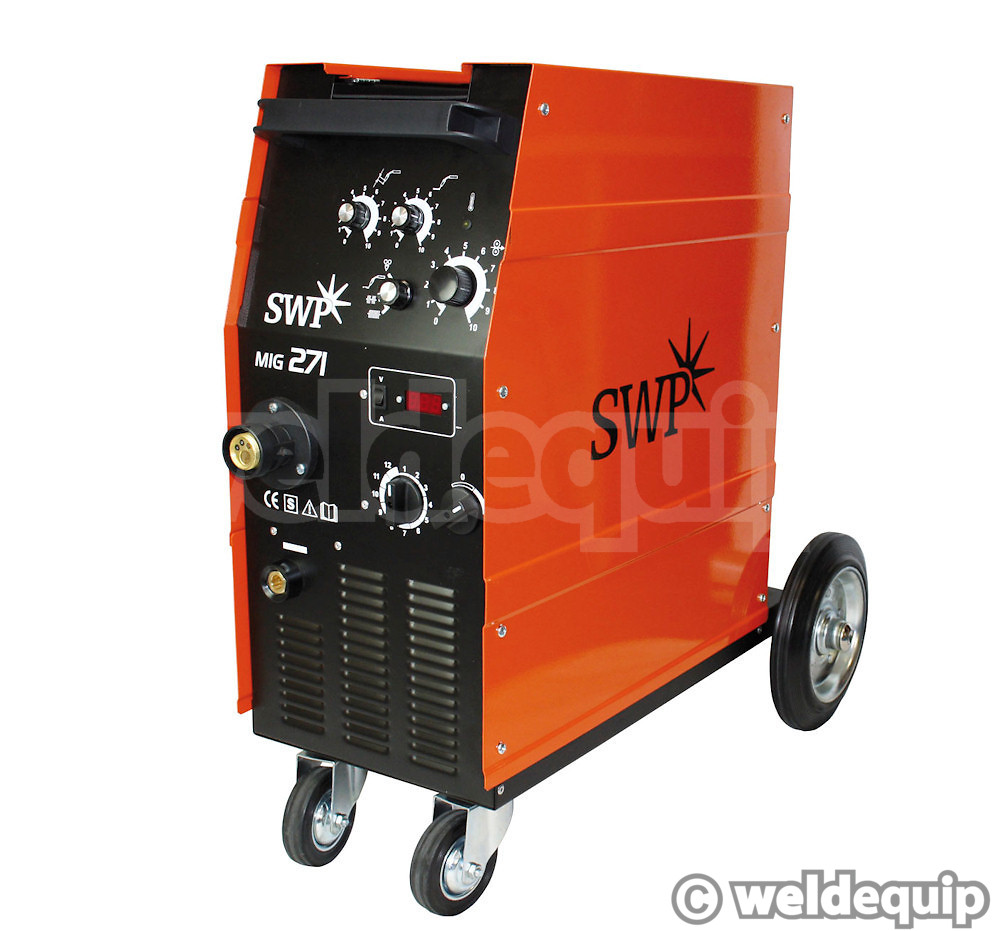

Wire feed shown is a 2 roll - the MIG 271 features a 4 roll geared version
