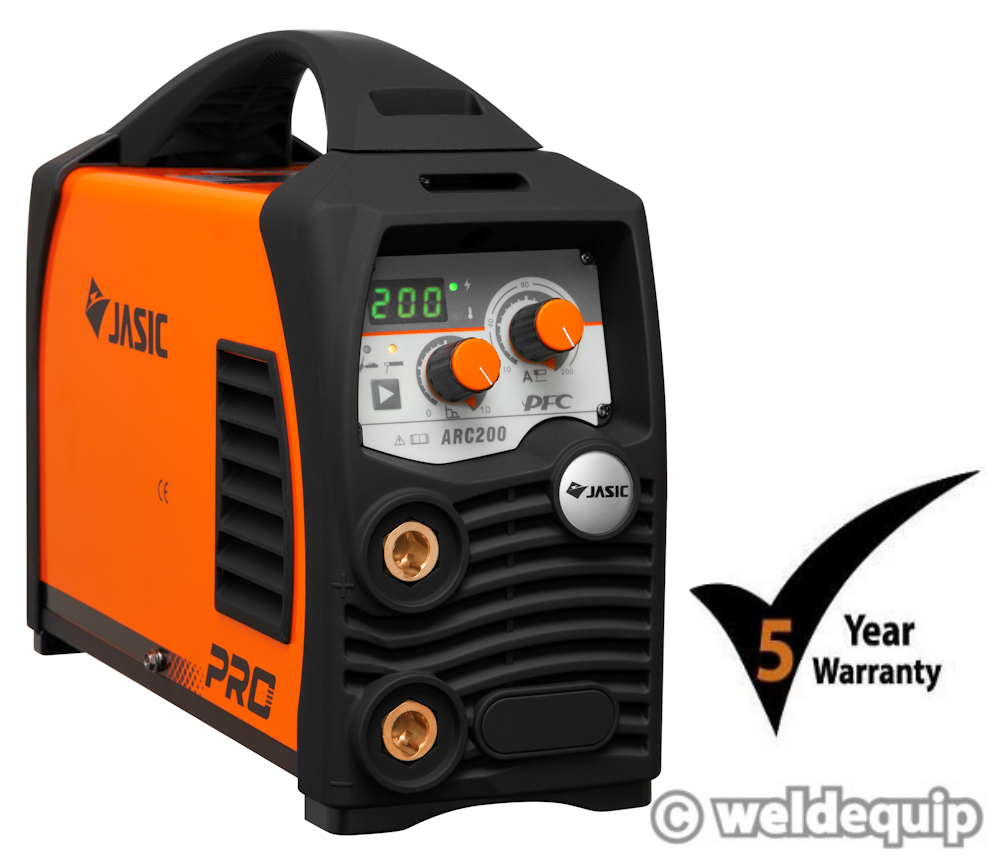

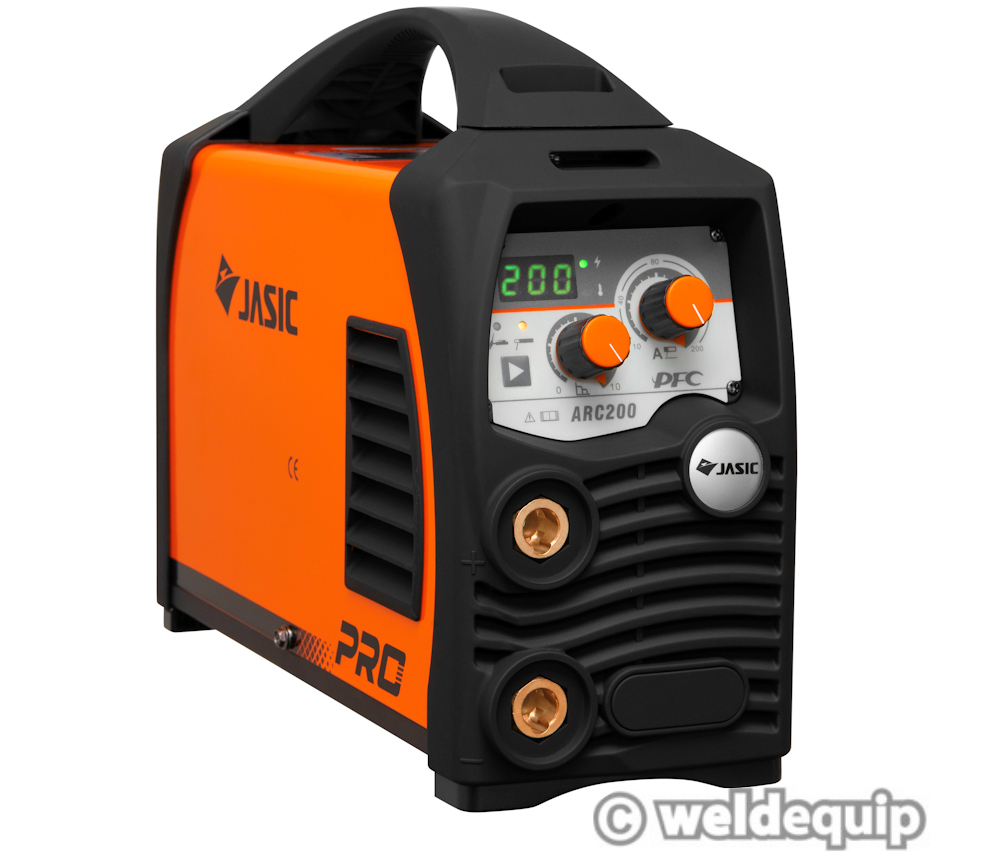

Jasic PRO ARC 200 PFC Inverter Arc Welder

10 - 200 Amp DC Inverter MMA Welder
Wide Voltage 95-265V with Auto-Sensing
Digital Meter
Lift-Arc TIG Facility
Complete with lead set
5 Year Warranty

£ 419 (inc VAT)

Shipping £7.95

(inc VAT to UK Mainland exc Highlands for any number of items)

Jasic PRO ARC 200 PFC Inverter Package
£419 (inc VAT)

Jasic PRO ARC 200 Inverter TIG Kit
£87.96 (inc VAT)
Includes TIG Torch Assembly & Industrial Argon Gas Regulator

Jasic Site Bag
£45 (inc VAT)
Tough Nylon holdall to protect machine & accessories

Jasic Site Case
£39 (inc VAT)
ABS Site Case for machine & leads

Machine Shoulder Strap
£4.80 (inc VAT)

Super portable (6.4kg), powerful 200 Amp DC Inverter MMA welder suitable for more demanding Arc welding tasks that will operate on any voltage from 95V to 265V, so is suitable for use on 115V site or 230V workshops supplies. Auto-Voltage sensing for ease of use and a Digital Meter for accurate setting.

Lift-TIG facility with the addition of the optional TIG Kit & Argon gas supply. Duty Cycles are measured at a full 40C.

Build quality, component quality and performance are excellent; supported by the best warranty in the business from Wilkinson Star.

Key Features

33 kHz IGBT Inverter technology for greatly reduced size, weight & efficiency
Wide Input Voltage 95V - 265V
Hot-Start, Anti-Stick and self adaptive Arc-Force for reliable, stable arc even with long extension leads
VRD and auto-compensation for voltage fluctuation
Advanced single PCB construction for easy testing & servicing
Industry leading 5 Year Warranty Cover & support from Wilkinson Star

Supplied With

3 metre lead set
5 year warranty cover

Technical Specification

Supply Voltage: 95V - 265V
Output Range: 10A - 200A on 230V, 10A to 110A on 115V
Duty Cycle @ 40C on 240V:
MMA 25% @200 Amps, 60% @142 Amps, 100% @110 Amps
TIG 40% @200 Amps, 60% @163 Amps, 100% @126 Amps
Dimensions: 365mm L x 135mm W x 280mm H
Weight (machine only): 6.4kg
Protection/Insulation Class: IP21/F
Standards of Conformance : ALL
Warranty: 5 Years
