Oxy-Propane/Propylene Brazing Equipment Set
- For Brazing, Soldering & Heating with Oxygen & Propane or Propylene
- Standard connection for portable & industrial size gas cylinders
- Ideal for garage workshops, maintenance, HVAC engineers etc.
£197 (inc VAT)
£59 (inc VAT)
£15.95 (inc VAT)
10M fitted hose set instead of standard 5M
£9.85 (inc VAT)
£9.85 (inc VAT)
£9.85 (inc VAT)
£9.85 (inc VAT)
£35.70 (inc VAT)
Invaluable equipment to have in any workshop, this set is designed to be used with readily available, economical Propane or Propylene fuel gas and standard refillable type Oxygen cylinders - both portable & industrial sizes.
Ideal for a wide variety of tasks including Brazing (not full fusion welding), Silver Soldering, Bending, Forming… or just freeing off that seized component that you cannot shift with a monkey wrench!

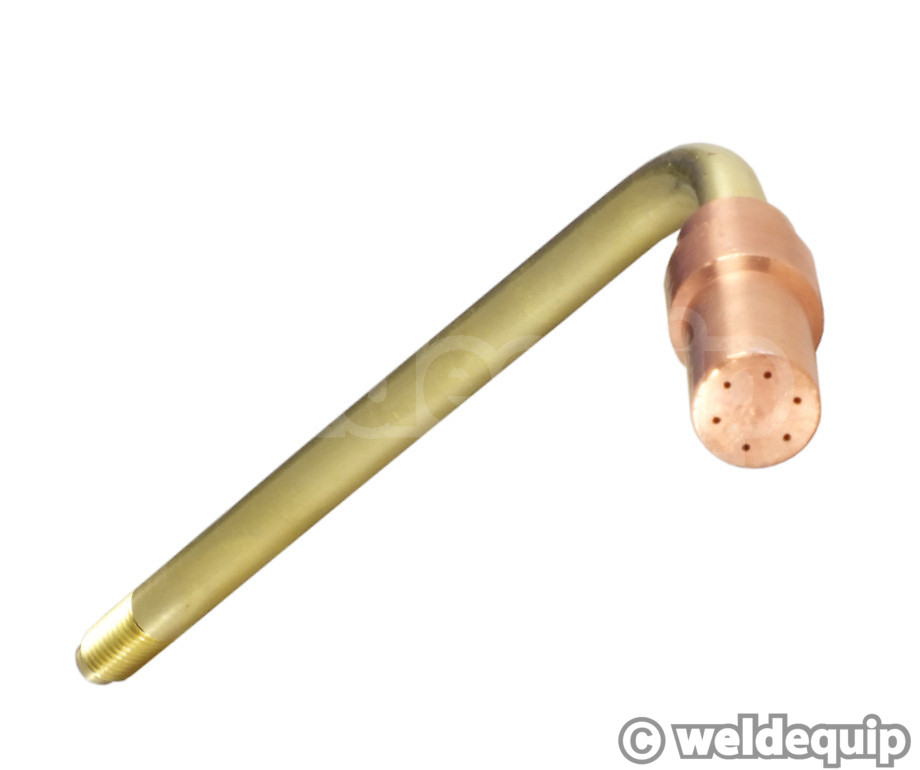

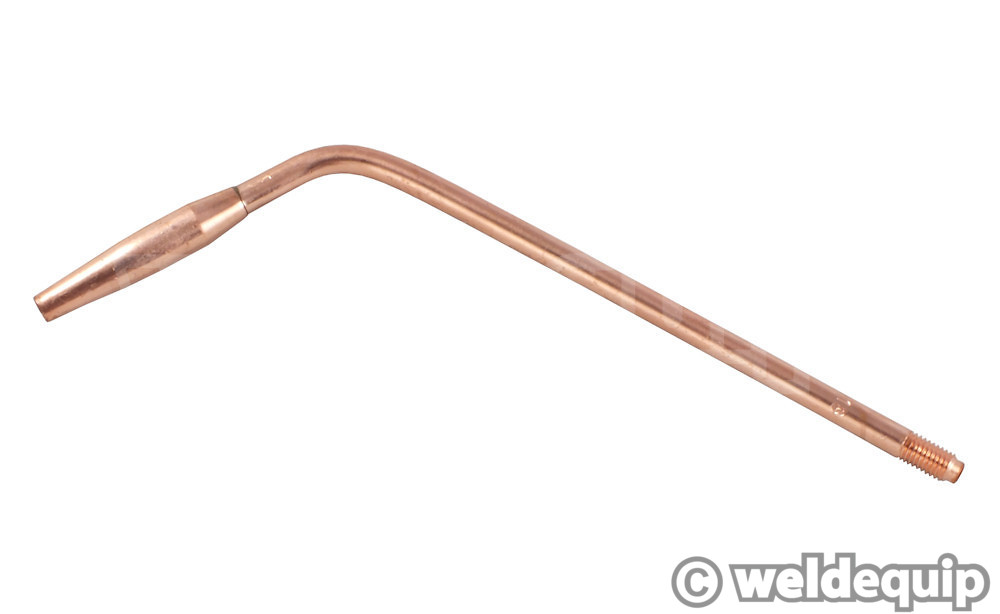

The two nozzles supplied offer a good heat range for silver soldering & general light duty brazing work, and the larger nozzles available provide extra volume for more demanding work such as copper & general heating applications. The optional Heating Attachment gives more heat volume again, and a much wider flame area, so is good for rapid heating of larger components.
A handy little Cutting Attachment is now available; Saffire DH type supplied with a special, 2 piece nozzle for use with Propane or Propylene gases. Cuts up to 20mm mild steel thickness!
Not suitable for use with Acetylene.

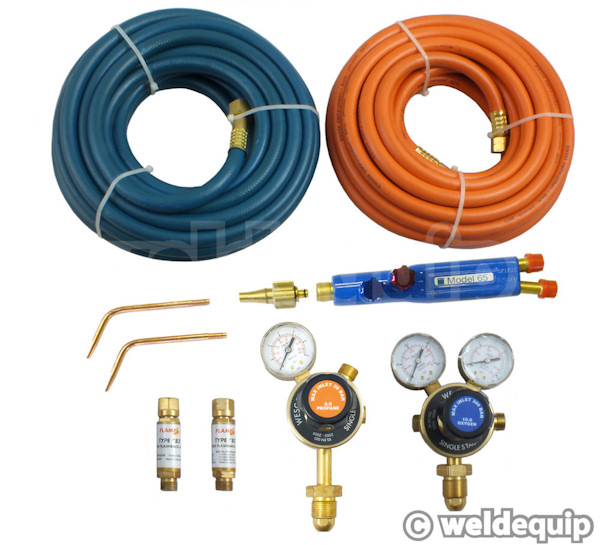

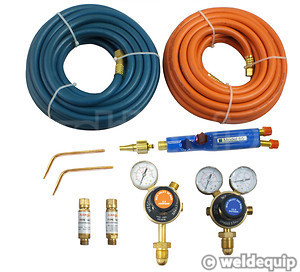

Supplied with
- Single Stage 2 Gauge Oxygen Gas Regulator 0-4 Bar Output
- Single Stage 2 Gauge Propane Gas Regulator 0-3.5 Bar Output
- Regulator mounted Flashback Arrestor for Oxygen
- Regulator mounted Flashback Arrestor for Propane
- Saffire DH style Lightweight Brazing Torch
- Lightweight Mixer
- P65 Propane Brazing Nozzle No.3
- P65 Propane Brazing Nozzle No.7
- 5 Metre x 6mm bore fitted Oxygen Hose Set with 1/4" Double Safety Check Valves
- 5 Metre x 6mm bore fitted Propane Hose Set with 1/4" Double Safety Check Valves
- Safety Goggles
BS EN ISO 2503
Heavy Duty Oxy/Propane Heating Kit also available here
