Phantom Extreme Auto Darkening Welding Helmet
- Dual Shade Ranges 5-8 and 9-13
- XL Lens area - 50% taller than standard sizes
- 2 Amp minimum sensitivity for precision TIG
- 2 x twin sensors for increased arc detection
- Replaceable battery for extended LCD cartridge life
- Suitable for MIG, TIG, ARC, PLASMA and OXY/ACETYLENE processes
- Clear Grinding Mode
- Accepts Magnification Lenses
Essentially the same as the popular Phantom XL from Weldability SIF the Extreme model benefits from a dual shade range of 5-8 and 9-13 to cover virtually every application, and a slightly better optical class.
The optical viewing area is almost 50% taller than standard versions for greater visibility of the job in hand, and benefits from 4 independent light sensors for dependable switching in all applications. Lens reaction time is <1/25,000s and is sensitive enough for DC Pulsed TIG down to 4 amps, AC TIG down to 4 amps, and standard DC TIG down to just 2 amps!

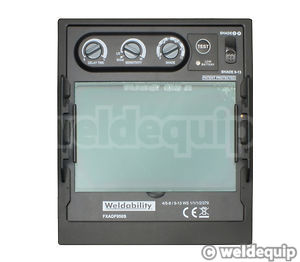

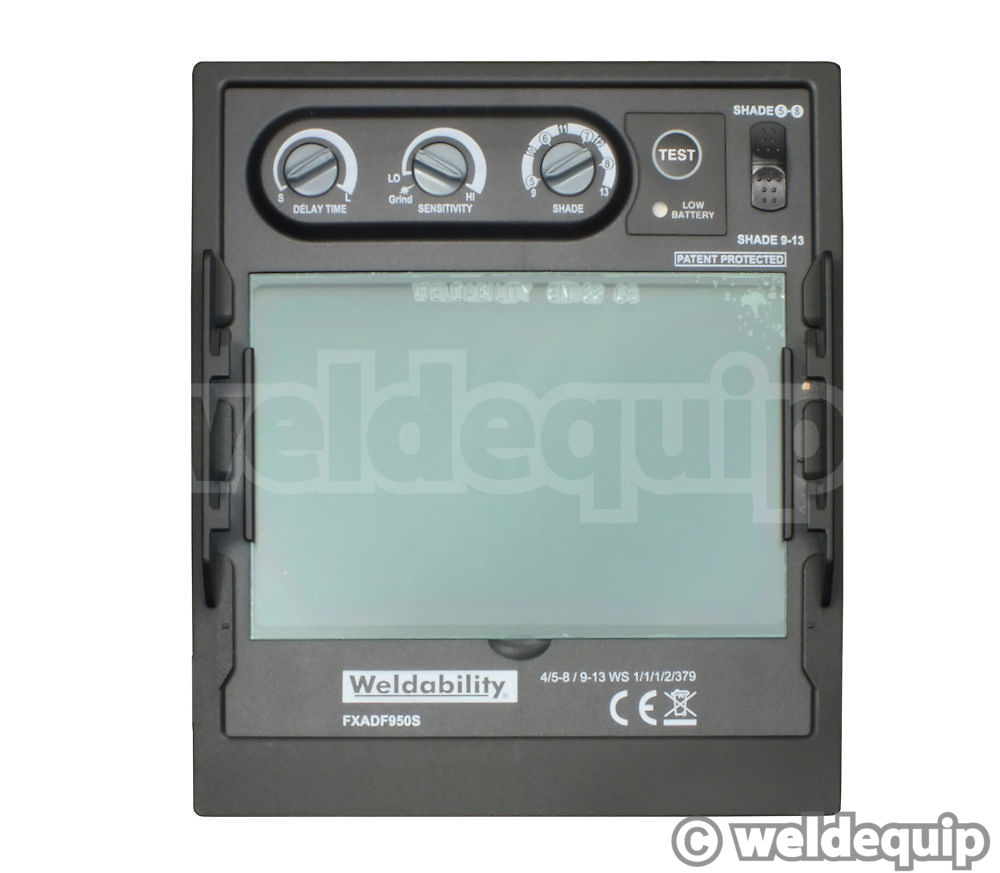

MIG/MAG, MMA & PLASMA Cutting/Welding and Oxy/Acetylene Welding/Cutting are all also perfectly coveredwith it’s Dual Range variable shade control 5-8 and 9-13; this is is located internally on the ADF unit to prevent any external damage caused from knocks, along with fully variable Sensitivity & Delay controls. The unit is solar cell powered from the welding arc, with a replaceable battery back-up for extended cartridge life; 6000hr average life, 2x 3V Lithium cell batteries, readily available.

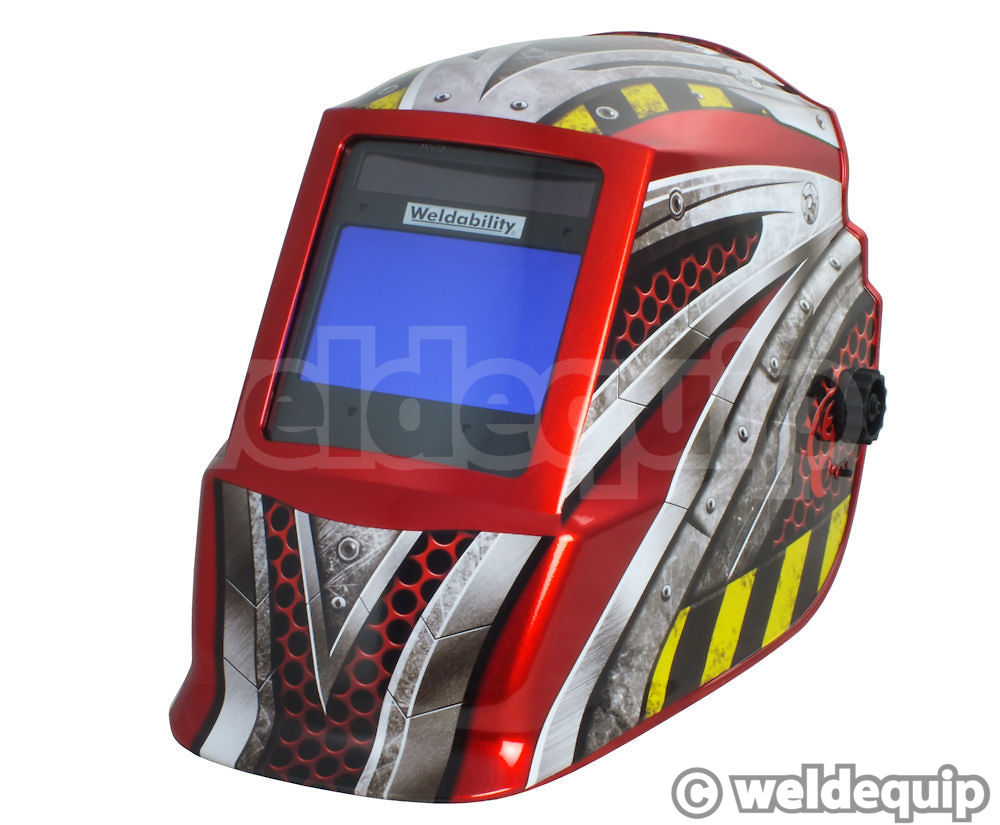

The helmet shell itself provides excellent, full front & side protection and is manufactured from high impact resistant Nylon to EN175B standard. Finished in a nice metallic red coating with ‘Extreme’ graphics. The headgear is comfortable & fully adjustable – from ‘nose to lens’ fit – as well as head size & rake angle adjustment.
Magnification Lenses can be slotted into the back of the LCD cartridge for fine detail work.
- Solar cell powered with 4x optical sensors
- Lithium battery back-up (replaceable) with internal LED to indicate replacement
- XL Viewing Area: 97mm x 62mm
- Application Range: DC TIG <2amp, AC TIG <4amp, DC Pulse TIG <4amp
- Suitable for MIG/MAG, TIG, MMA & PLASMA ARC Welding/Cutting, Gas Welding/Cutting & Grinding
- Dual range variable shade control DIN 5-8 and DIN 9-13 (internal adjustment)
- Fully variable Sensitivity & Delay control
- Optical Class 1/1/1/2
- Weight 490g
Standards: CE, EN379, EN175, ANSI Z87.1, CSA Z94.3
