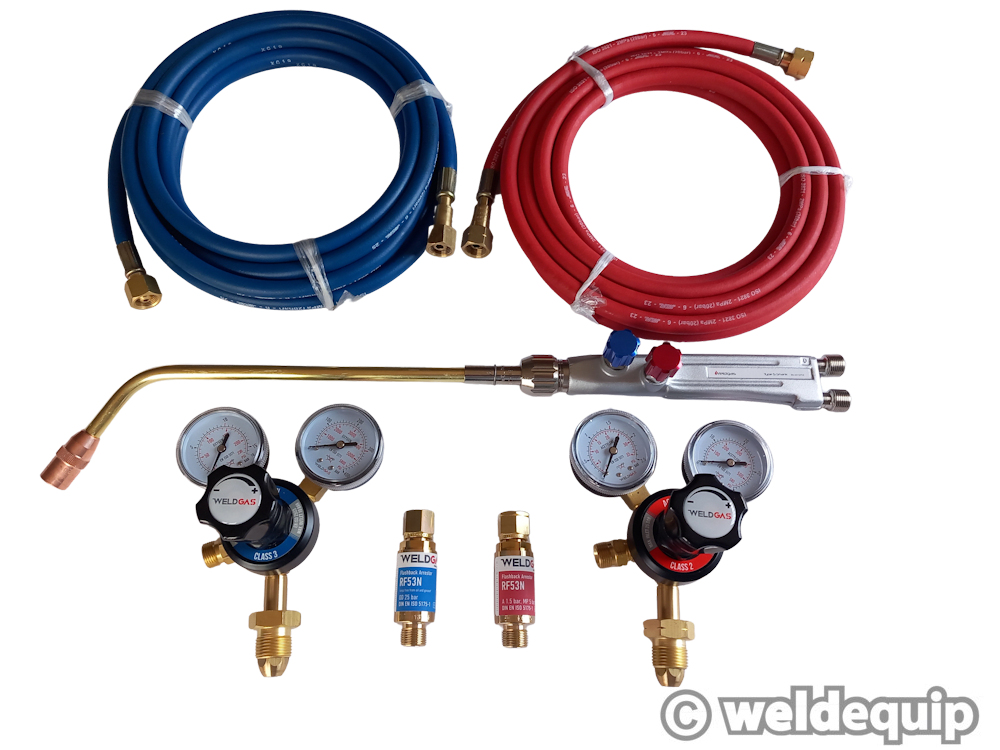

Oxy/Acetylene Heating Set

For use with all sizes of Oxygen & Acetylene Cylinders
Type 5 HD Heating Torch
Ideal for HVAC Engineers, Maintenance, Garage Workshops etc.

£ 209 (inc VAT)

Shipping £7.95

(inc VAT to UK Mainland exc Highlands for any number of items)

Oxy/Acetylene Heating Set
£209 (inc VAT)

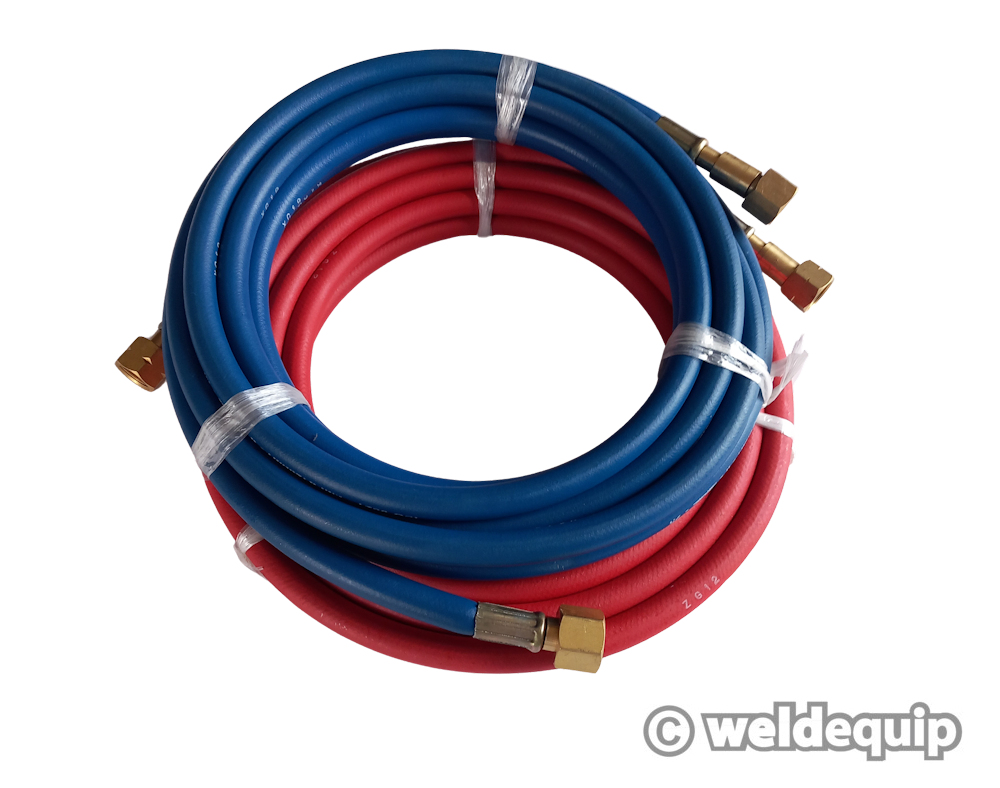

10 Metre Hose Set Upgrade
£15.95 (inc VAT)
10M fitted hose set instead of standard 5M

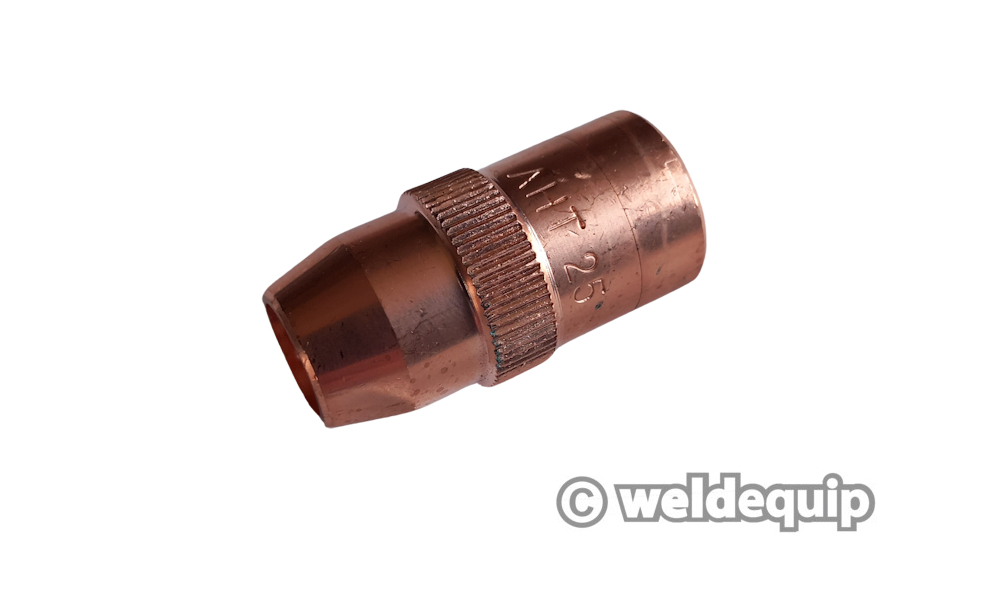

AHT25 Acetylene Heating Nozzle
£9.60 (inc VAT)
57,000 Btu/H Output

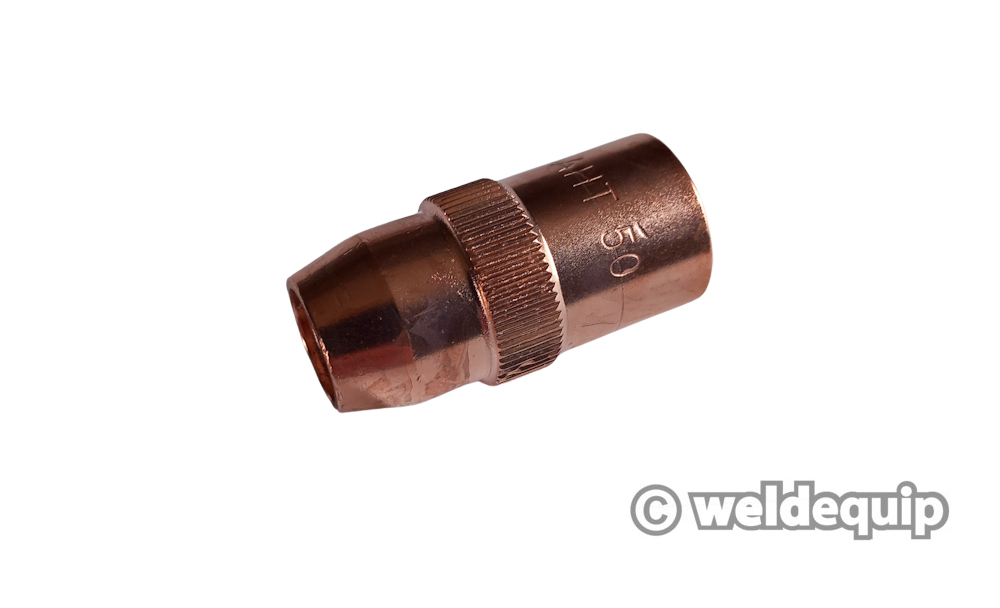

AHT50 Acetylene Heating Nozzle
£9.60 (inc VAT)
91,000 Btu/H Output

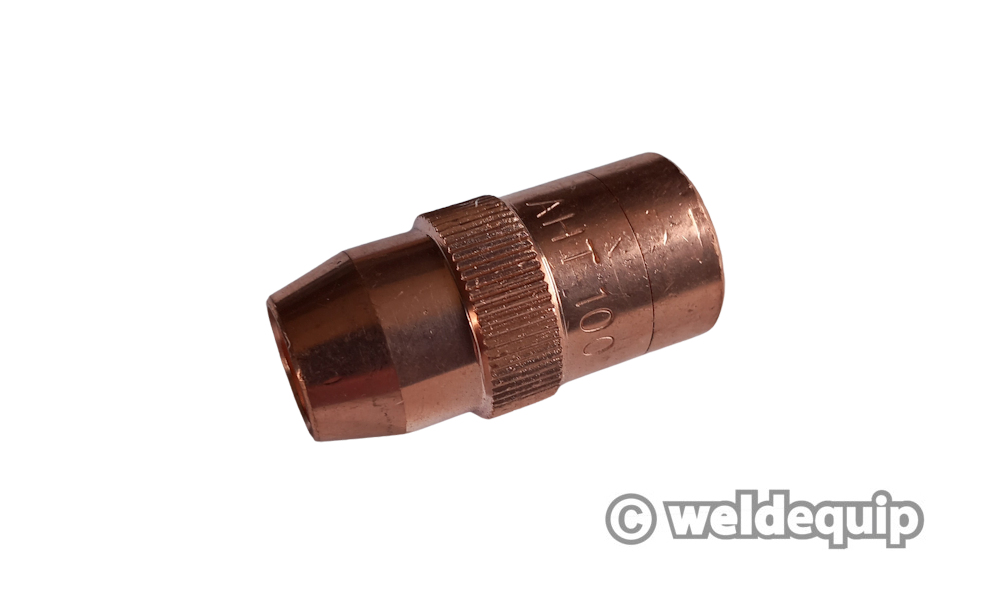

AHT100 Acetylene Heating Nozzle
£9.60 (inc VAT)
139,000 Btu/H Output

For heating applications using Oxygen and Acetylene gas cylinders, both portable & full size industrial.

Supplied with a Type 5 heavy duty torch and 266mm neck for use with AHT type Acetylene heating nozzles. Torch connections are the larger, 3/8" size but we supply the smaller bore 1/4" hoses for easier handling - 5 metre length as standard, with a 10 metre option.

Fit a Swaged Nozzle and you are good to go for standard welding & brazing jobs. A Cutting Attachment is also available, should the need ever arise.

Supplied with

Single Stage Two Gauge Oxygen Gas Regulator 0-4 Bar Output
Single Stage Two Gauge Acetylene Gas Regulator 0-1.5 Bar Output
Regulator mounted Flashback Arrestor Oxygen
Regulator mounted Flashback Arrestor Acetylene
Type 5 HD Welding Shank
Type 5 Acetylene Mixer
266mm Heating Neck
AHT25 Acetylene Heating Nozzle - 57,000 Btu/H Output
5 Metre x 6mm bore fitted Oxygen Hose Set with 3/8" Double Safety Check Valves
5 Metre x 6mm bore fitted Acetylene Hose Set with 3/8" Double Safety Check Valves
Safety Goggles

BS EN ISO 2503

Oxy/Acetylene Heating Set
