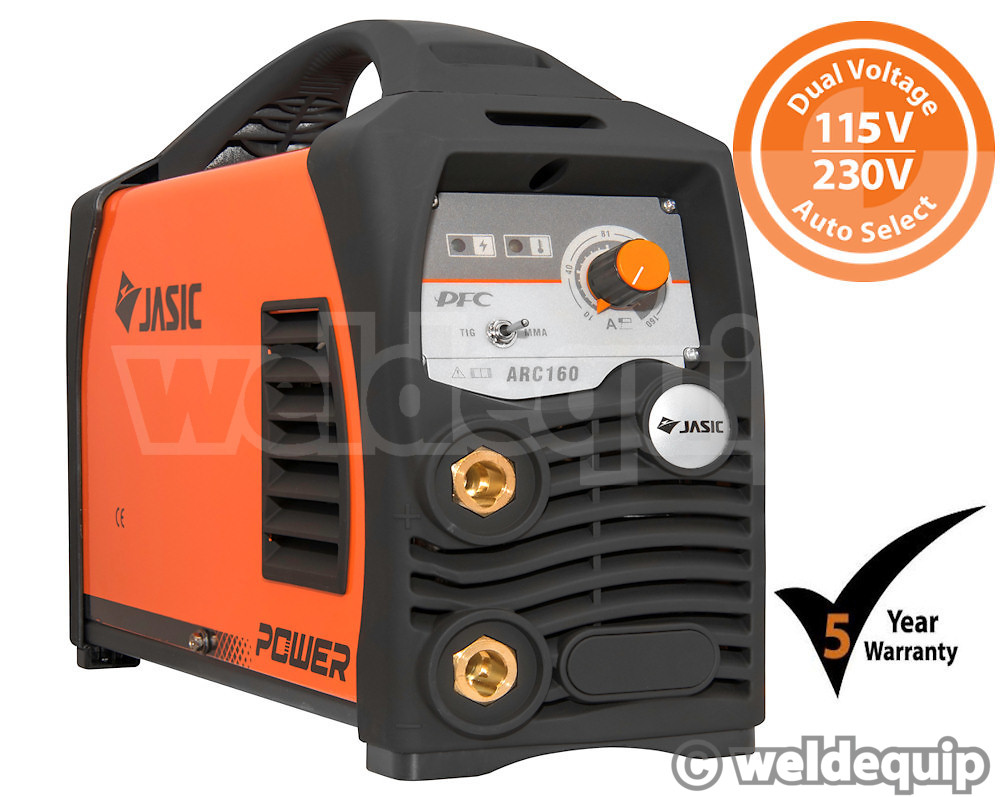

Jasic POWER ARC 160 PFC Inverter Arc Welder
- 10 – 160 Amp DC Inverter MMA Welder
- Dual Voltage 230v/110v with Auto-Select
- PFC – Power Factor Correction
- Lift-Arc TIG Facility
- Complete with Site Case & MMA Lead Set
- 5 Year Warranty
£345 (inc VAT)
£87.96 (inc VAT)
Includes TIG Torch Assembly & Industrial Argon Gas Regulator
The UK's best selling range of Inverter Welding Systems from Wilkinson Star Ltd. Exceptionally keenly priced - without compromising on component specification - all feature advanced design, excellent build quality, and professional level features & performance. Fully supported throughout the UK & Ireland with an industry beating 5 Year Warranty & component level repair facilities in Manchester.
A very compact & portable (6.4Kg) Dual Voltage MMA Inverter for site or shop use. 160 Amps from 230v mains supplies and 125 Amps from 110v site supplies, so will run up to 4.0mm electrodes. Power Factor Correction – PFC – for energy efficient service. Duty Cycles are measured at a full 40C. It can be run from Generators and used for Lift-Start TIG with the addition of the optional TIG Kit & Argon gas supply.
Key Features
- Dual Voltage 110/230v with Auto-Select
- PFC – Power Factor Correction – Energy saving
- Hot-Start, Anti-Stick and self adaptive Arc-Force for reliable, stable arc even with long extension leads
- VRD and auto-compensation for voltage fluctuation
- Advanced single PCB construction for easy testing & servicing
- Industry leading 5 Year Warranty Cover & support from Wilkinson Star

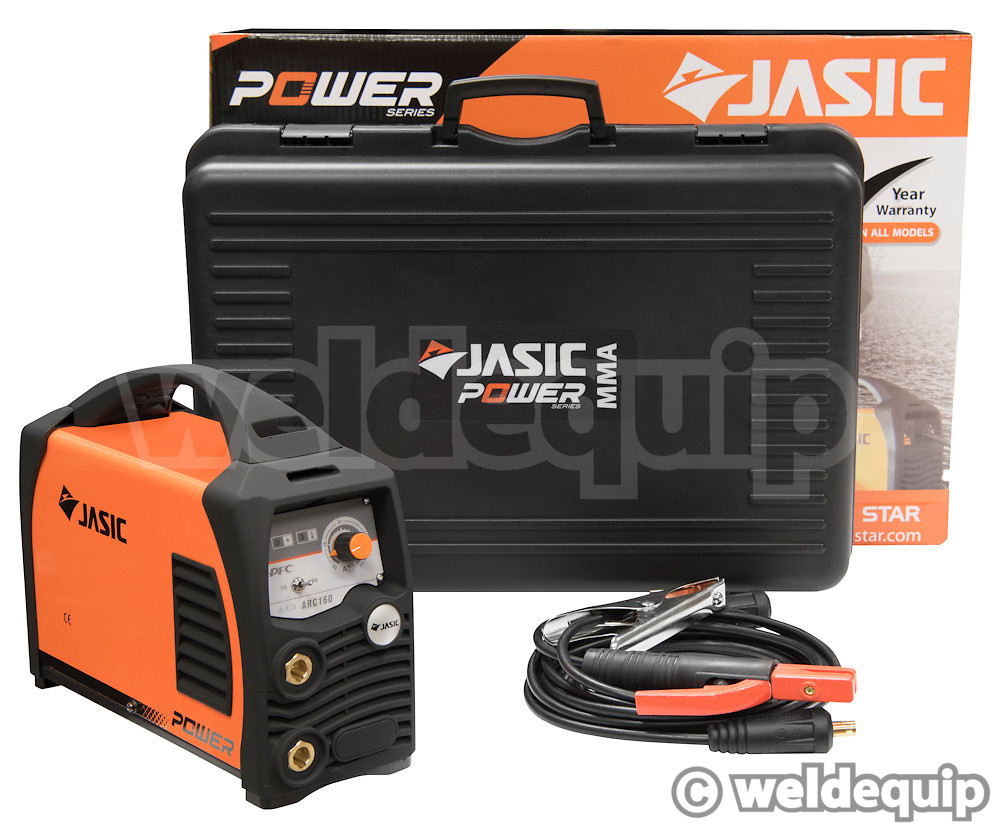

Supplied With

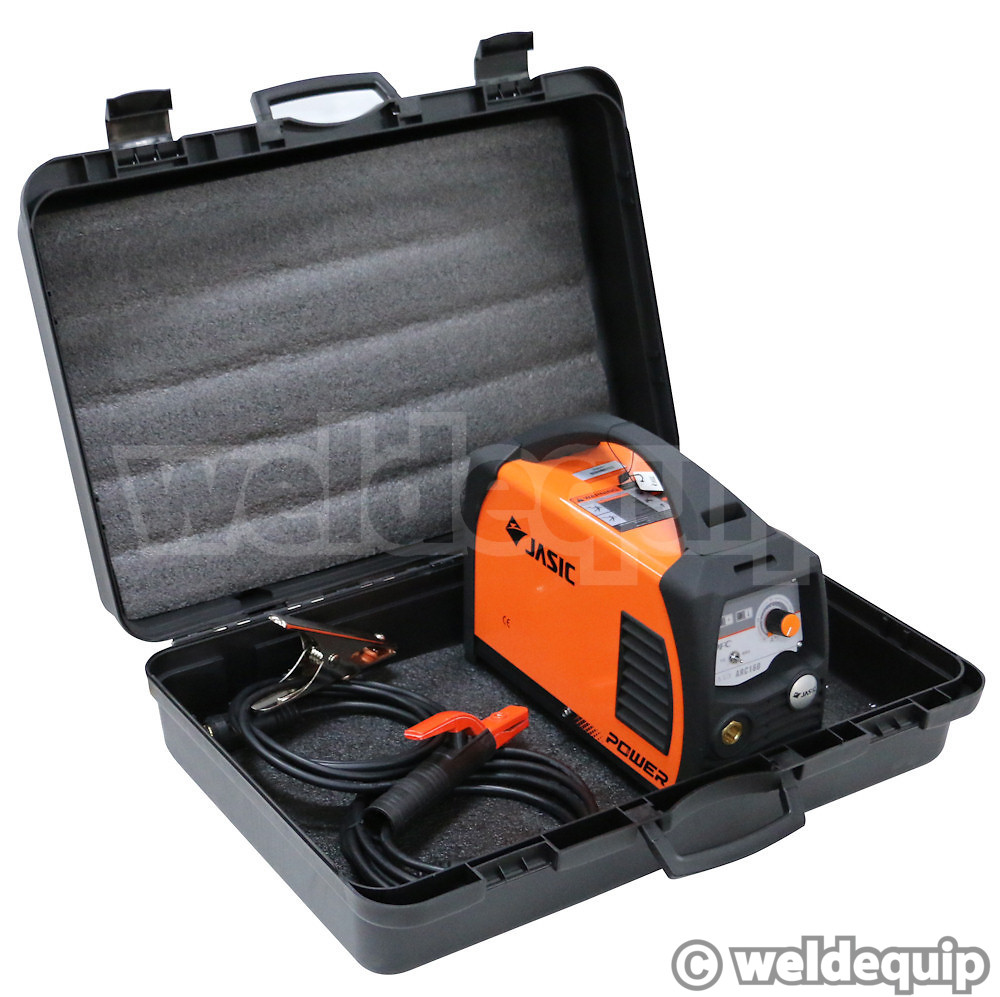

- 3 Metre MMA Leads, Site Case
- 5 year warranty cover
Technical Specification
- Supply Voltage: 230v or 110v (auto-switching)
- Output Range: 10A – 160A on 230v, 10A – 125A on 115v
- Duty Cycle @ 40C: 35% @ 160 Amps from 230v, 35% @ 125 Amps from 110v
- Dimensions: 365mmL x 135mm W x 280mm H
- Weight (machine only): 6.4Kg
- Protection/Insulation Class: IP21/F
- Standards of Conformance : ALL
- Warranty: 5 Years
