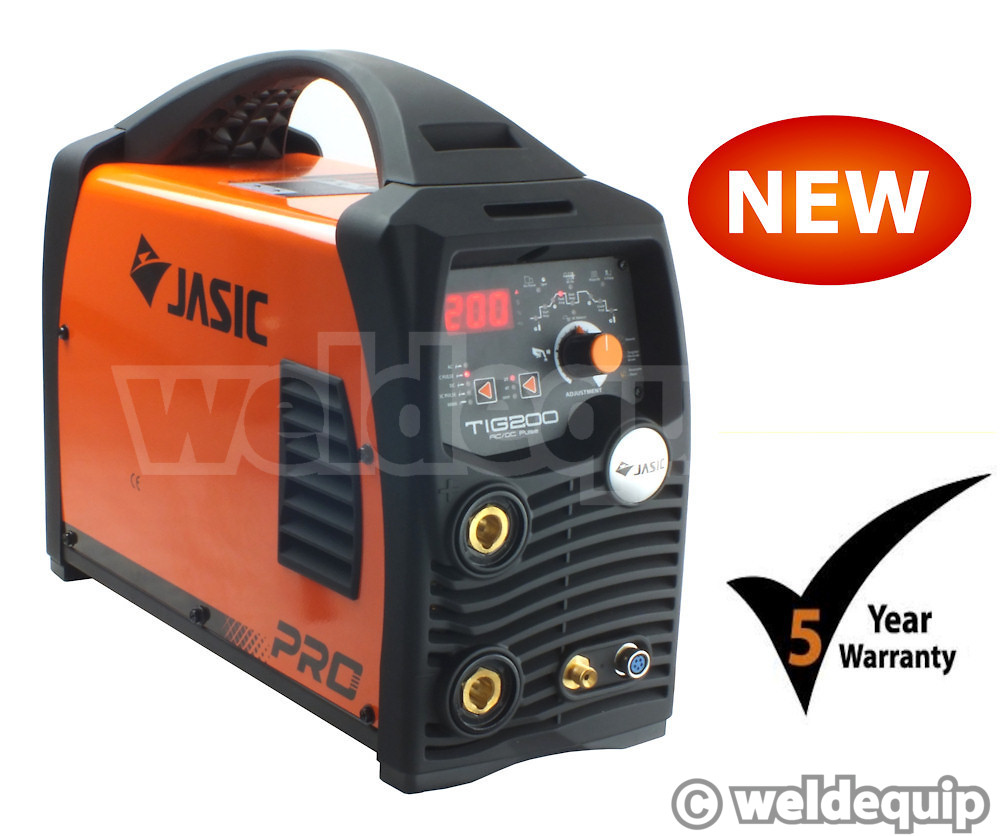

Jasic PRO TIG 200P AC/DC Mini Digital Inverter TIG Welder
- 200 Amp AC/DC TIG Inverter 230v Single Phase
- Ultra compact & lightweight - just 9kg weight!
- Fully loaded specification with Digital Control

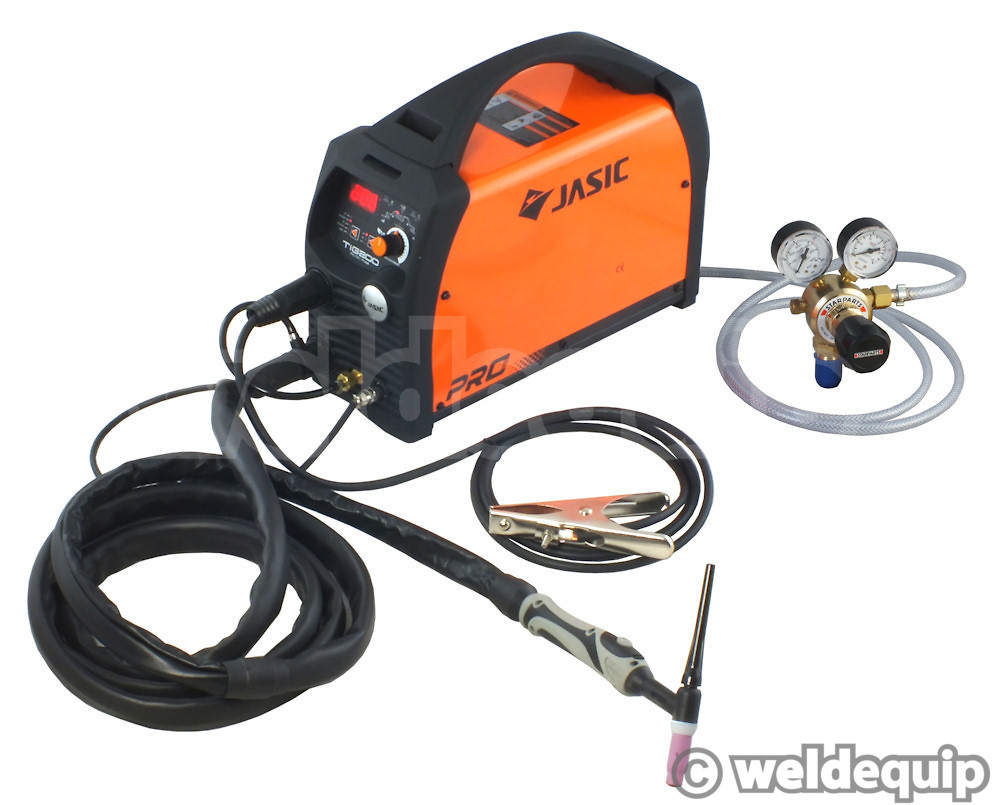

- Package including TIG Torch & Gas Regulator
- Market leading 5 Year Parts & Labour Warranty
£1344 (inc VAT)
£235 (inc VAT)
£85.65 (inc VAT)
For finer applications up to 150 Amp DC, 115 Amp AC. Fitted Amphenol plug for trigger
£87.40 (inc VAT)
For very fine applications up to 125 Amp DC, 100 Amp AC. Fitted Amphenol plug for trigger
A 200 Amp 230v single phase AC/DC TIG weighing in at just 9 Kilos!

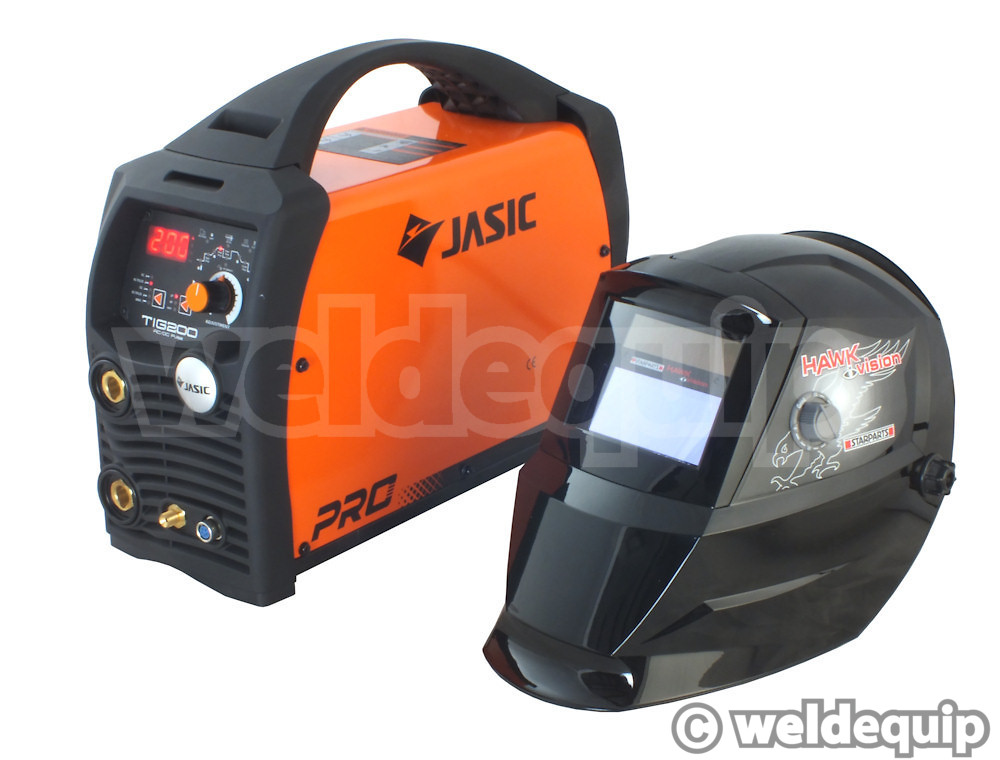

We have illustrated it next to an Auto-Darkening Headshield (not supplied) to show you how compact this set is. This is a real photograph and has not been 'photo-shopped' in any way!
Despite it's size & weight it is feature rich, very easy to set up and use with single dial adjustment & performs brilliantly.
Fully supported with Wilkinson Star's industry leading service centre and 5 year warranty.
- Ultra compact & lightweight - just 9kg
- Digitally controlled for superior arc performance
- AC Square Wave TIG, AC Pulsed TIG, DC TIG, DC Pulsed TIG, MMA (Arc)
- Adjustable AC Frequency Control 20Hz - 250Hz
- Adjustable AC Balance Control 20-65%
- AC Pulse TIG 0.2Hz - 200Hz
- DC Pulse TIG 0.2Hz - 200Hz
- Programme memory storage for fast job setting recall

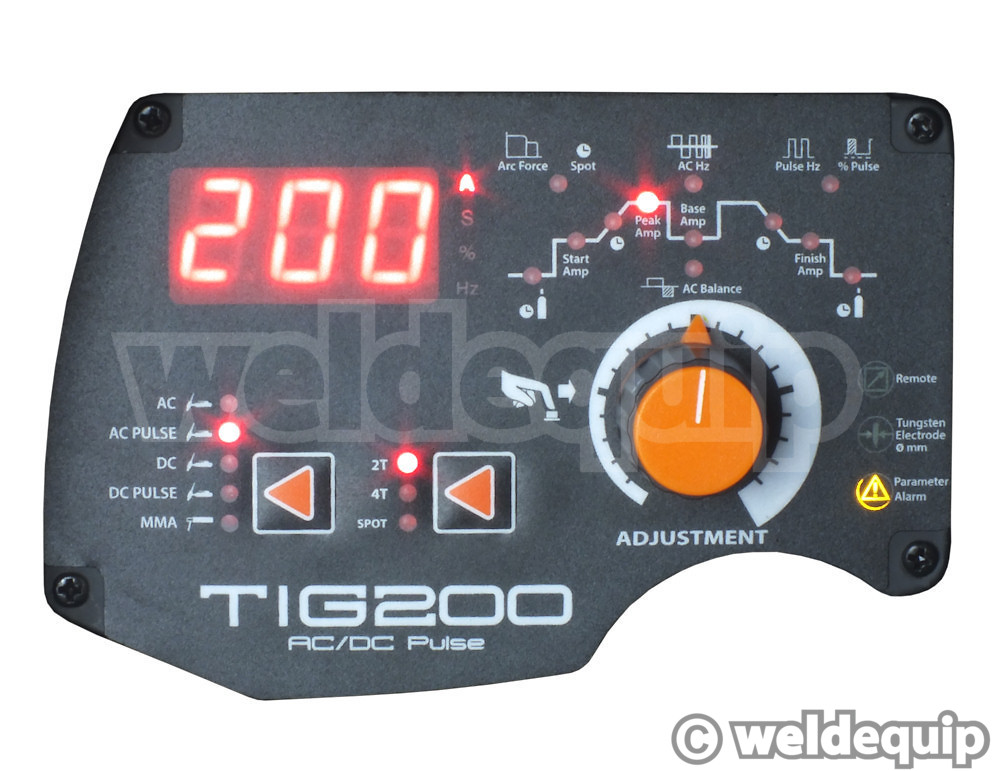

- Easy to use control panel with digital display & audible setting menu
- Industry leading 5 Year Warranty Cover & support from Wilkinson Star
- 4 Metre WP26 TIG Torch Assembly fitted with power cable adaptor, quick fit gas connection, zipper cover & front-end parts.
- 3 Metre Earth Lead fitted with 200 amp earth clamp, 35-50mm dinse plug
- Argon Gas Regulator 2 gauge
- 3 Metre Argon Gas Hose with quick release machine coupling
- 5 Year Parts & Labour warranty cover
- Supply Voltage: 230v
- Input Fuse: 16A/30A @ Max
- Output Range: 5A – 200A TIG, 10A – 160A on MMA
- Duty Cycle @ 40C:
TIG 25% @ 200 Amps, 60% @ 129 Amps, 100% @ 100 Amps
MMA 30% @ 160 Amps, 60% @ 114 Amps, 100% @ 88 Amps
- Dimensions: 435mm L x 160mm W x 340mm H
- Weight (machine only): 9kg
- Protection/Insulation Class: IP21S/B
- Standards of Conformance : ALL
- Warranty: 5 Years
