Portapack Gas Cutting & Welding Equipment Set
- For use with Oxygen & Acetylene gas cylinders (not supplied)
- Portable Trolley for 'Portapack' size gas cylinders
- Ideal for HVAC engineers, maintenance, garage workshops etc.
Quality Oxy/Acetylene equipment supplied with a portable trolley for use with 'Portapack' size gas cylinders, or equipment only for connection to larger sizes of cylinders, up to the full size industrial. The addition of a Cutting Attachment with this set enables cutting up to 20mm mild steel.

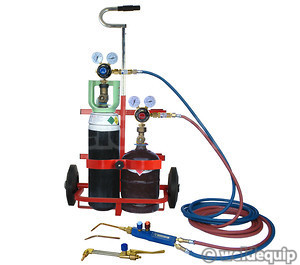

The cylinder trolley has a height adjustable cylinder clamp to accommodate BOC Gases Size E & K - illustrated in the main image - or size X and M, which have twice the gas capacity. Some other gas suppliers portable cylinders also fit. A collapsible handle allows easier transportation in vehicles & there is provision for filler rod tube storage.
*The Oxygen Regulator supplied is a 0-4 bar output model, not the usual 0-10 bar, so you can set your working pressure more accurately; incorrect pressure settings are a cause of flashbacks. Flashback Arrestors in the set are best in class, German made WITT RF53N.

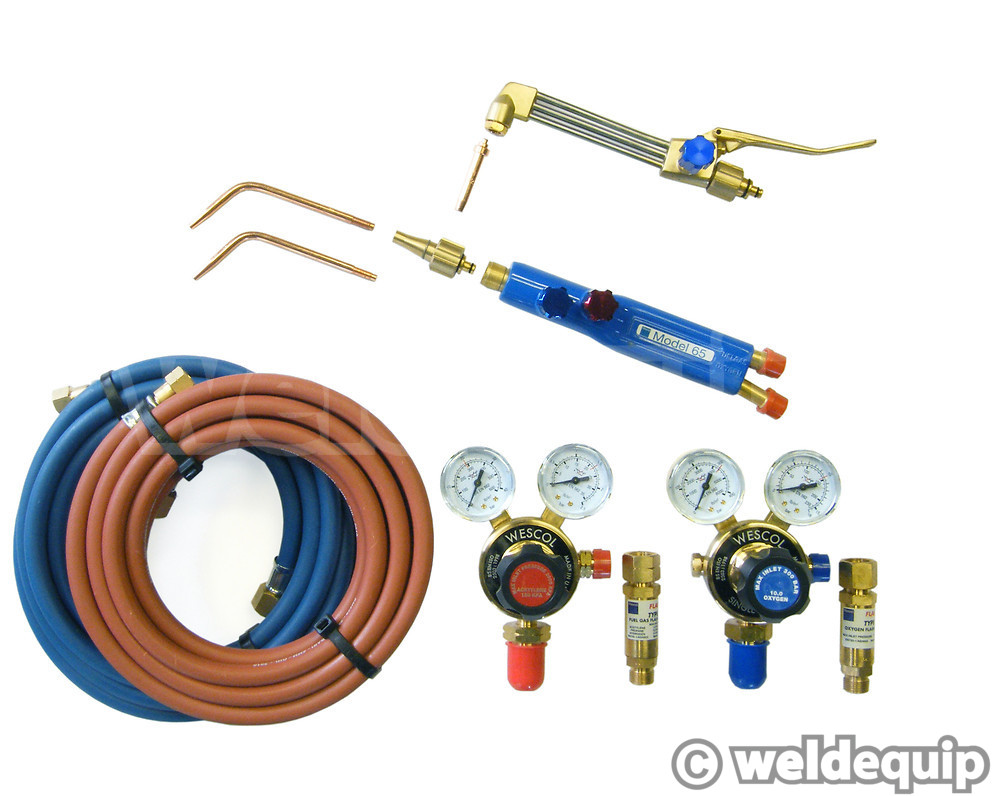

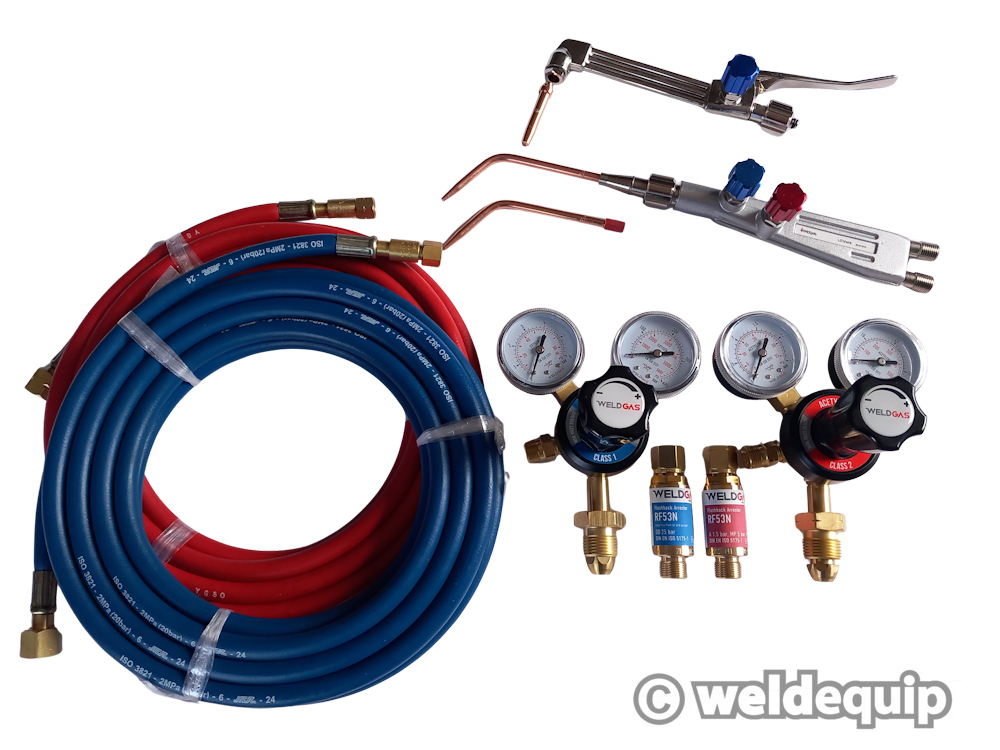

Supplied with
- Single Stage 2 Gauge Oxygen Gas Regulator 0-4 Bar Output
- Single Stage 2 Gauge Acetylene Gas Regulator 0-1.5 Bar Output
- Regulator Mounted Flashback Arrestor for Oxygen
- Regulator Mounted Flashback Arrestor for Acetylene
- Saffire DH style Lightweight welding Shank
- Lightweight Cutting Attachment
- 3/64" AFN Cutting Nozzle
- Lightweight welding Mixer
- Lightweight welding Nozzle No.2
- Lightweight welding Nozzle No.5
- 5 Metre x 6mm bore fitted Oxygen Hose Set with 1/4" Double Safety Check Valves
- 5 Metre x 6mm bore fitted Acetylene Hose Set with 1/4" Double Safety Check Valves
- Portable Gas Cylinder Trolley with collapsible handle & rod tube storage
- Safety Goggles
BS EN ISO 2503
