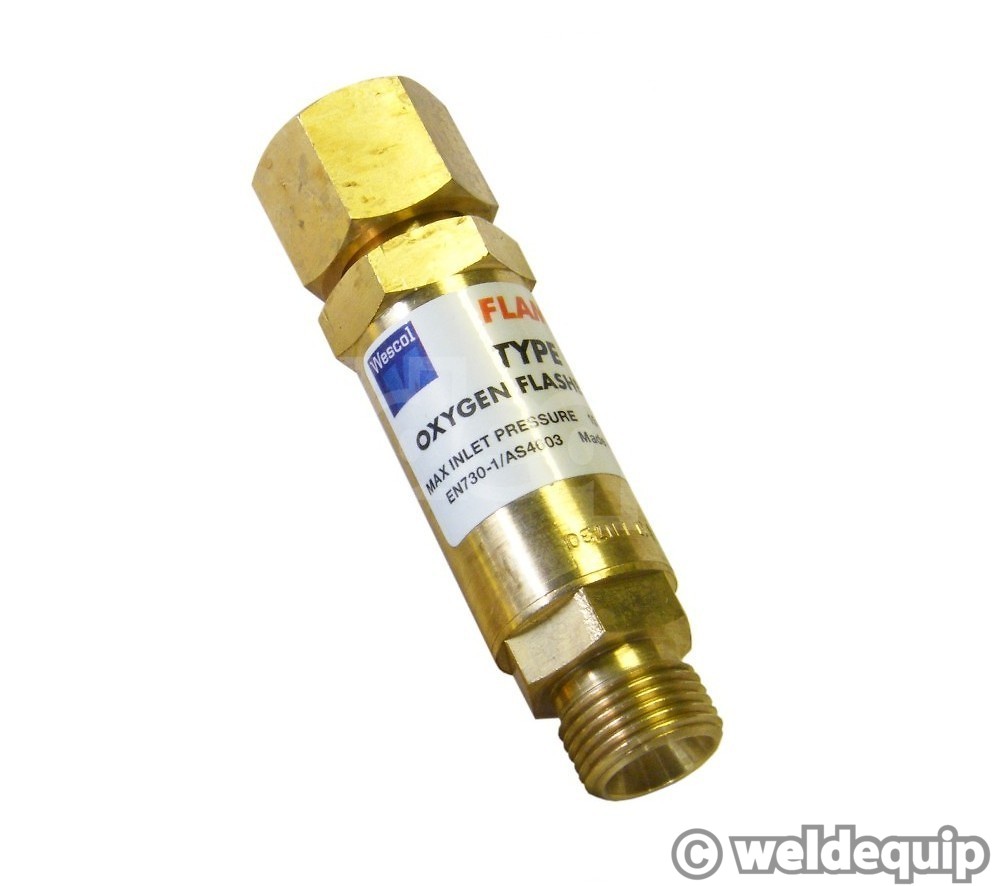

Flamestop@reg; Type 83 FBA Oxygen £15.98 (inc VAT)
Absolutely essential safety devices that must be fitted to all Oxy/Fuel gas
equipment to ensure H&SE compliance, and the operators own peace of mind.
The Flamestop ® Type 83 connects directly to the gas regulator & will
prevent a flame travelling back to the gas cylinder in the event of a flashback.
Protecting both operator & equipment, they are the most economical type
of Arrestor & provide the minimum safety level requirement. Designed to
withstand a number of minor flashbacks, should this type of unit be subject
to a severe flashback, the device's thermal element will be activated - completely
isolating the regulator and gas source - and must then be replaced with a new
unit.
3/8" Bsp gas regulator fitting and 3/8" Bsp gas hose fitting.

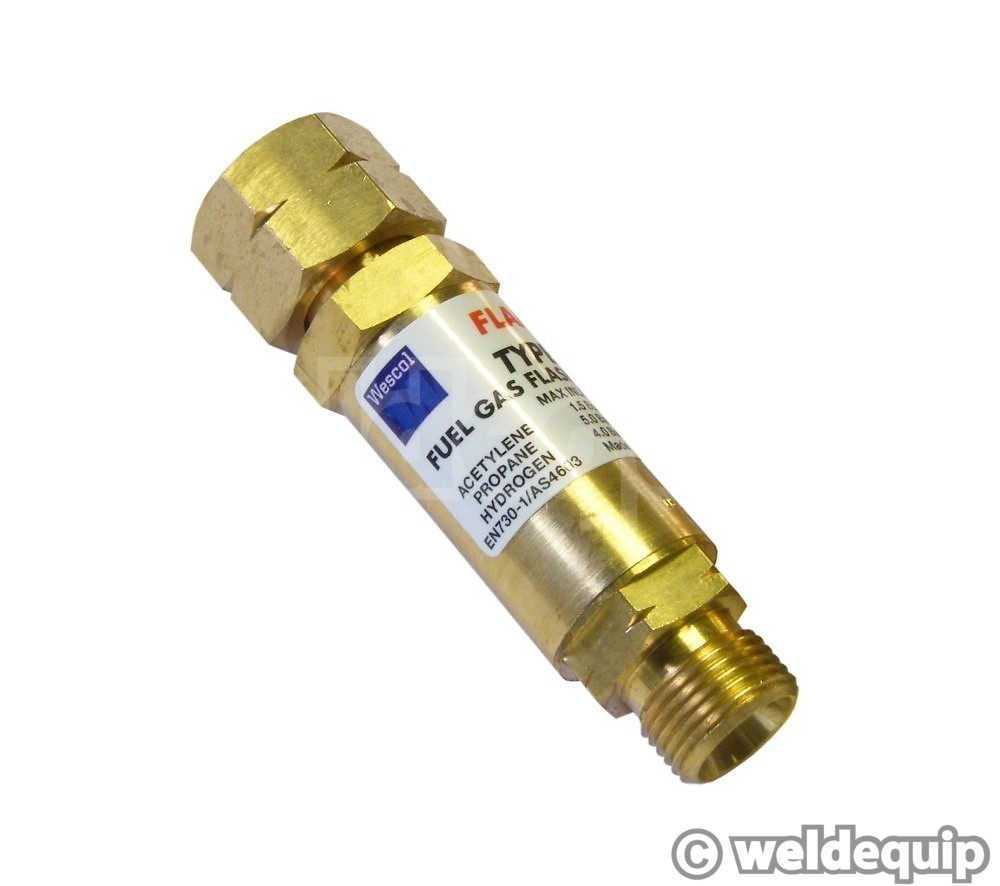

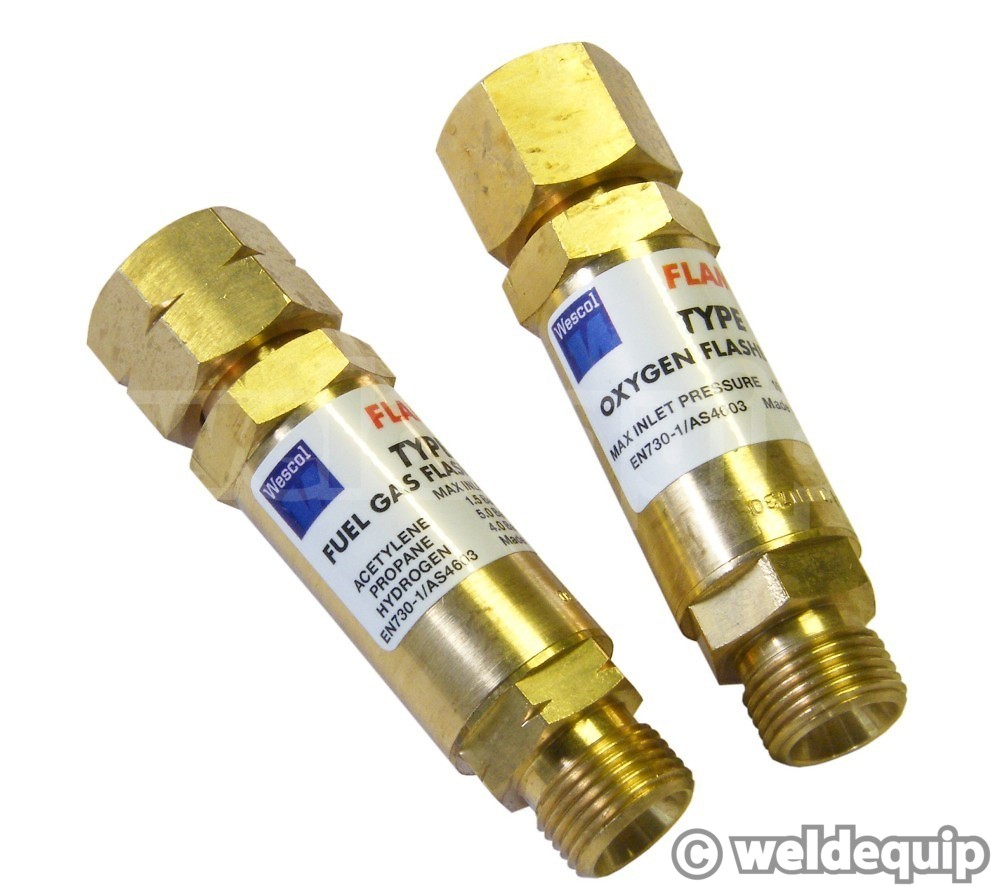

Fuel gas models are suitable for use with acetylene, propane, hydrogen &
natural gases. Oxygen models can also be used with high pressure air.
Features Include
Sintered stainless steel flame arresting element
Thermally activated shut off valve
Gas non-return valve
Dust filter
Standards
Designed & manufactured in the UK to comply with international safety
standard EN 730 and independently tested by H&SE (UK), BAM (Germany) and
UL (USA).
